Venus Pro Series

Key Features

Modular LED Display | Smart Design, Lower Costs
- Independent Modular System

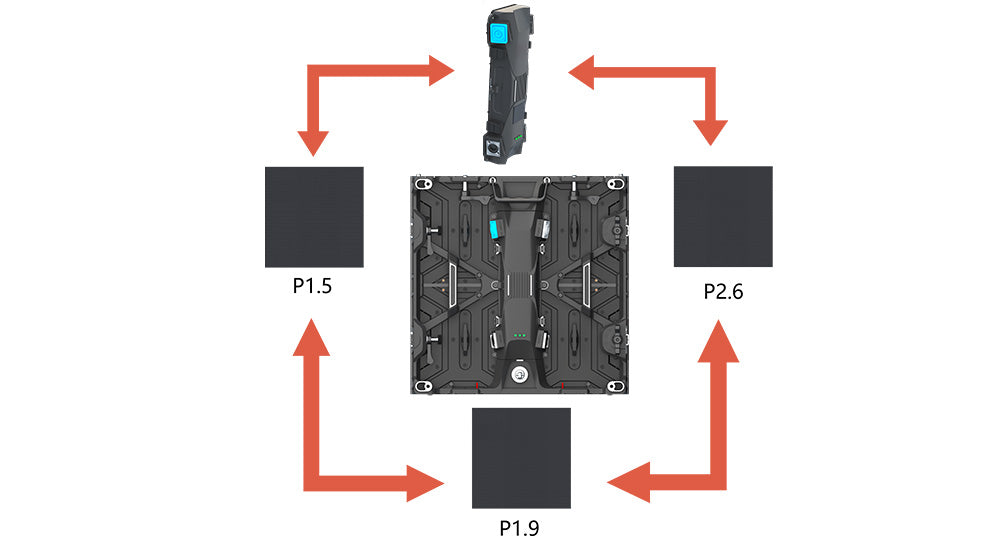

Our independent LED modules and power boxes allow for individual disassembly. Experience fast maintenance and zero-hassle service to maximize your screen’s uptime. - Universal Frame Compatibility
One cabinet frame fits multiple pixel pitches. Reduce spare parts costs and future-proof your investment by upgrading resolution without replacing the entire infrastructure.

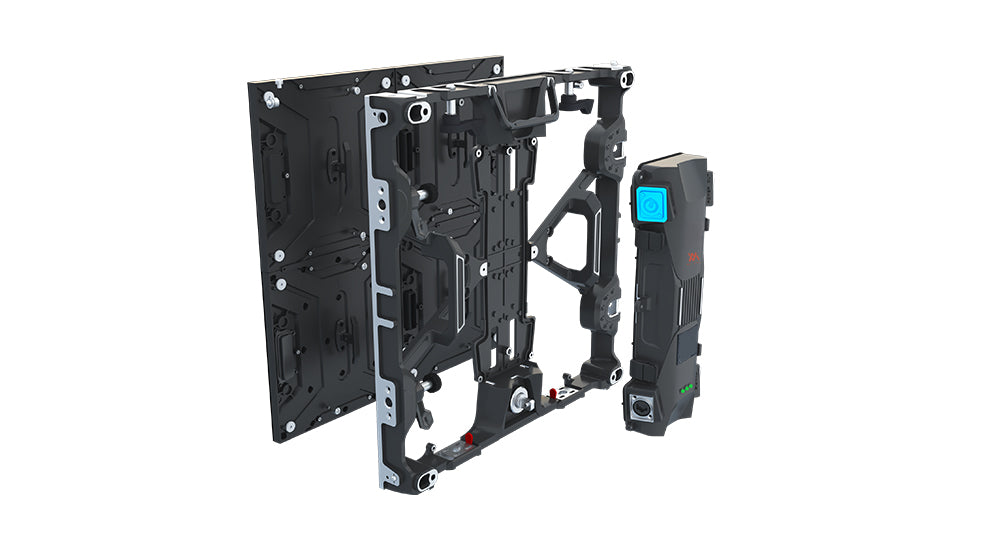

Full Front & Rear Maintenance
- Universal Serviceability: Full front and rear access for every module—cut maintenance time by 50%.
- Snap-Latch Control Box: 100% tool-free removal and replacement in seconds.
- Total Front Access: All HUB boards and modules are fully serviceable from the front.

Efficient and Silent Heat Dissipation

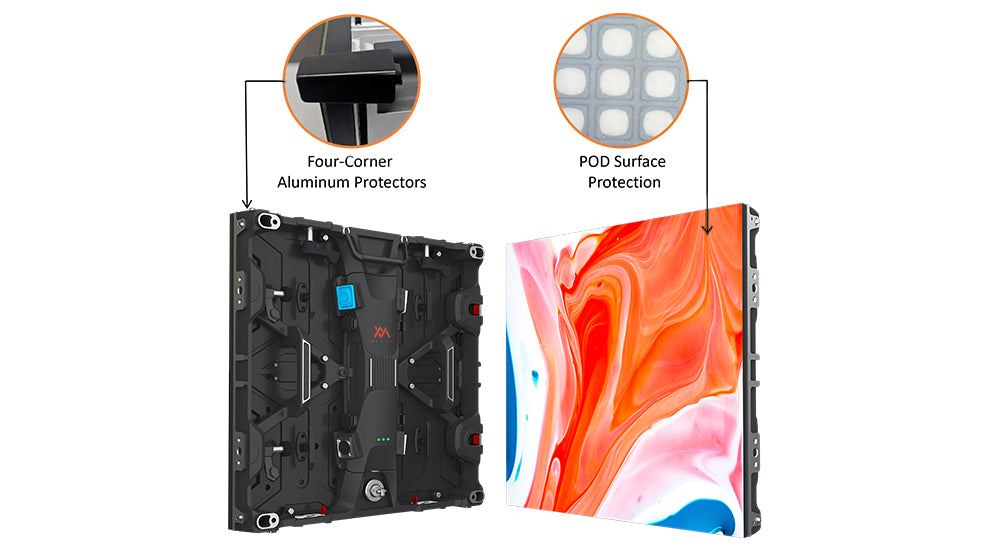

- Proactive Corner Protection: Specialized corner & floor protectors to eliminate collision damage during transit.
- Superior Shear Strength: POD surface treatment & refined manufacturing for maximum impact resistance.
- Engineered for Longevity: Minimized accidental damage translates to a longer lifespan and higher ROI.

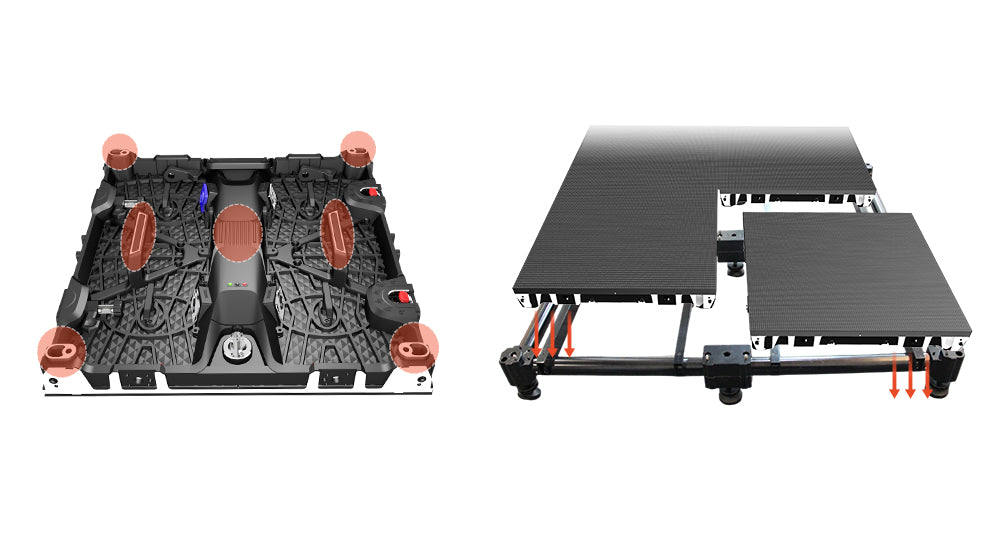

Industrial-Grade Durability & 1.3-Ton Load Capacity
- Impact-Resistant Build: Reinforced structure with module buffering for maximum durability.
- 1.3-Ton Load Capacity: Supports 1300kg/㎡—ideal for cars and high-intensity foot traffic.
- Efficient Heat Dissipation: High-protection thermal design for stable, long-term performance.
- Pro Floor Framework: Multi-point support and specialized frames for rapid, tool-free setup.

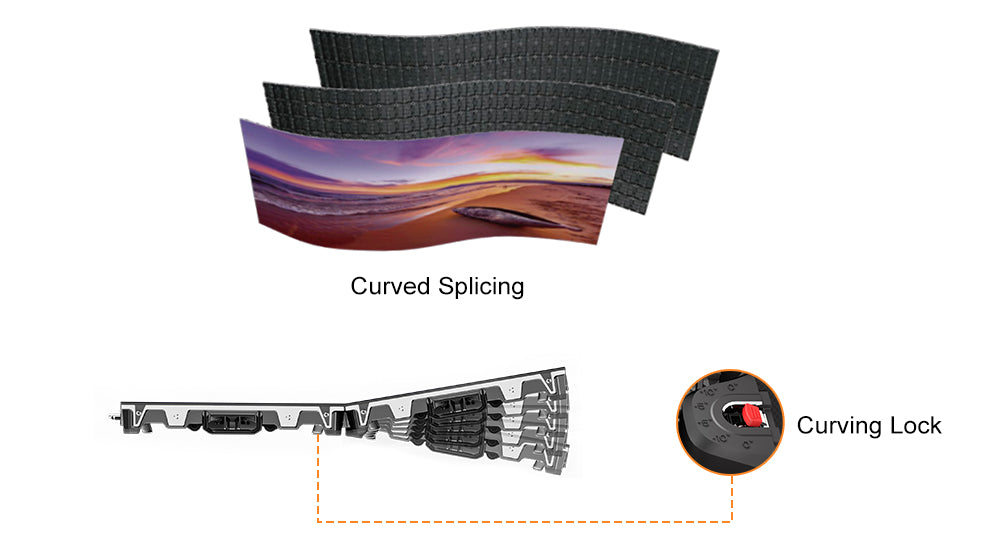

Flexible Splicing for Versatile Scenarios
High-Precision Splicing: Flat & Curved Flexibility
- Effortless Flat Setup: Optimized for speed and maximum operational efficiency—get your screen up and running in record time.
- Precision Curving: Integrated angle locks support -5°, 0°, +5°, and +10° configurations, seamlessly adapting to any creative stage or complex installation.
Application Scenarios

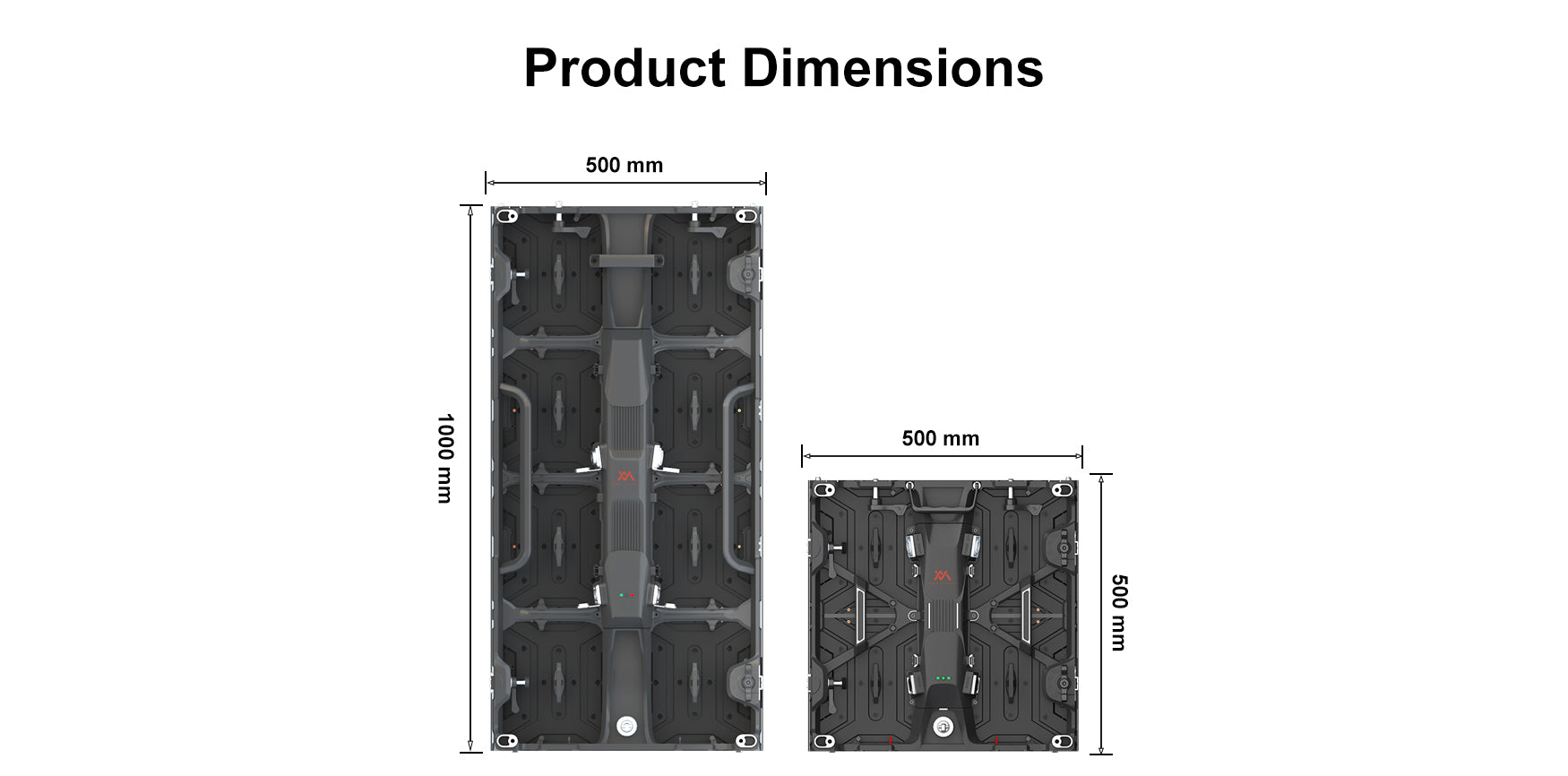

Product Specification
| Model | Application | Pixel Pitch (mm) | LED Package | Surface Treatment / Product Type | Cabinet Size (mm) | Cabinet Resolution (px) | Weight | Brightness (nits) | Grayscale (bit) | Contrast Ratio | Refresh Rate (Hz) | Viewing Angle (H/V) / Transparency | IP Rating (Front / Rear) | Power Consumption (Max / Avg, W/m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VN-151PRO | Indoor | 1.56 | Flip-chip MIP1010, common cathode | GOB | 500 × 500 × 83 | 320 × 320 | 7.5 | 1500 | 16 | 10000:1 | ≥7680 | 160° / 160° | IP54 / IP21 | 540 / 180 |
| VN-191PRO | Indoor | 1.953 | Flip-chip 1010, common cathode | GOB | 500 × 500 × 83 | 256 × 256 | 7.5 | 1500 | 16 | 10000:1 | ≥7680 | 160° / 160° | IP54 / IP21 | 540 / 180 |
| VN-261PRO | Indoor | 2.604 | Flip-chip 1010, common cathode | Module mask | 500 × 500 × 83 | 192 × 192 | 7.5 | 1500 | 16 | 10000:1 | ≥7680 | 160° / 140° | IP40 / IP21 | 540 / 180 |
| VN-390PRO | Outdoor | 3.906 | SMD1820 | Module mask | 500 × 1000 × 83 | 128 × 256 | 12.5 | 4500 | 16 | 4000:1 | ≥7680 | 140° / 140° | IP65 / IP54 | 650 / 217 |
| VN-480PRO | Outdoor | 4.808 | SMD1820 | Module mask | 500 × 1000 × 83 | 104 × 208 | 12.5 | 4500 | 16 | 4000:1 | ≥7680 | 140° / 140° | IP65 / IP54 | 650 / 217 |
