Ceres Series

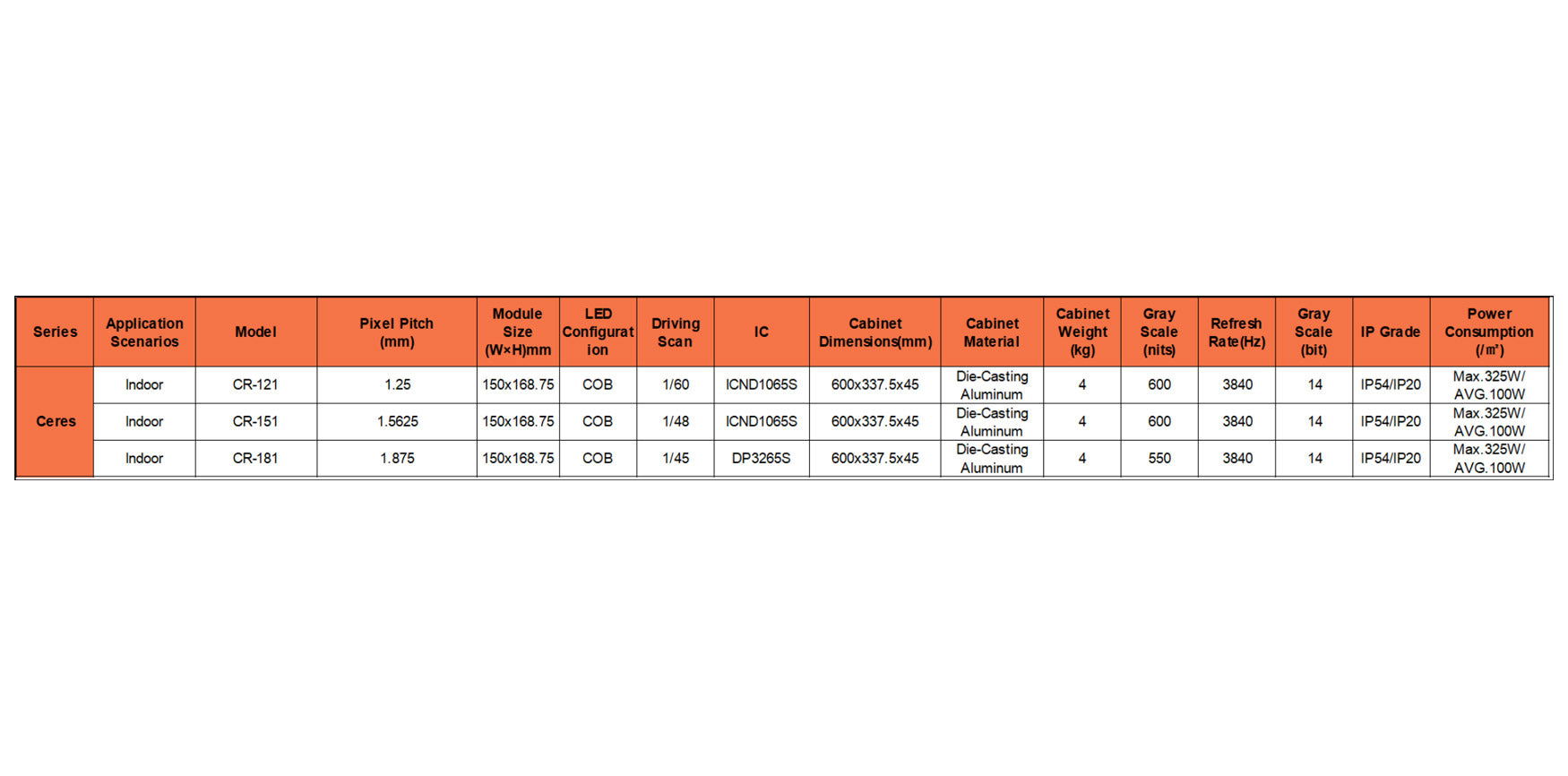

Product Dimensions

Key Features

Ultra-Slim & Lightweight Design
Crafted from high-strength lightweight materials, the cabinet features a 600mm × 337.5mm (16:9) size for fast installation and removal. It reduces transportation and deployment costs while enabling easy splicing into 2K, 4K, or even 8K large-format displays.

High Density & Brightness with Superior Protection
COB LED technology delivers higher pixel density, brightness, and contrast—ideal for a wide range of indoor and outdoor applications. Featuring nano-optical encapsulation and specialized surface treatment, the panel achieves IP54 protection, 4H surface hardness, and 8 layers of robust protection.

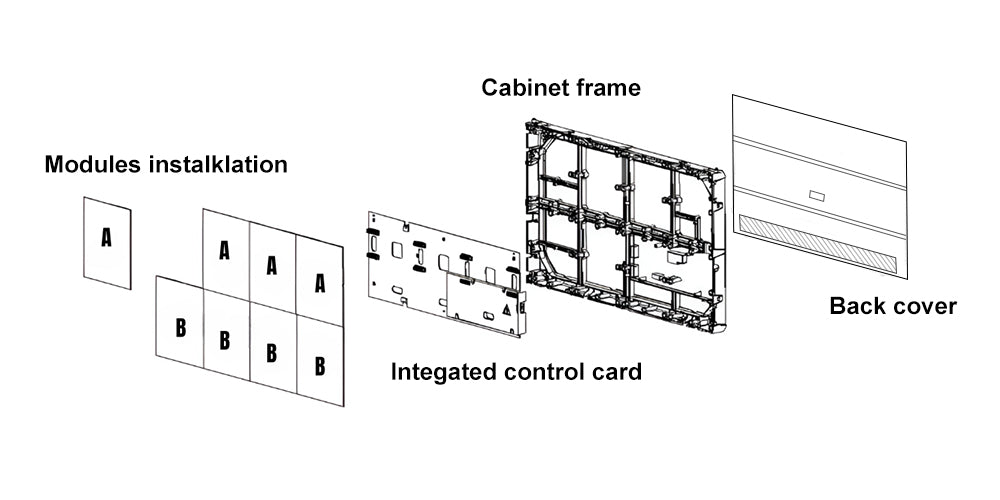

Flexible Installation & Maintenance
Supports front-access maintenance for easy installation and quick servicing. Designed to adapt to complex environments, improving operational efficiency.

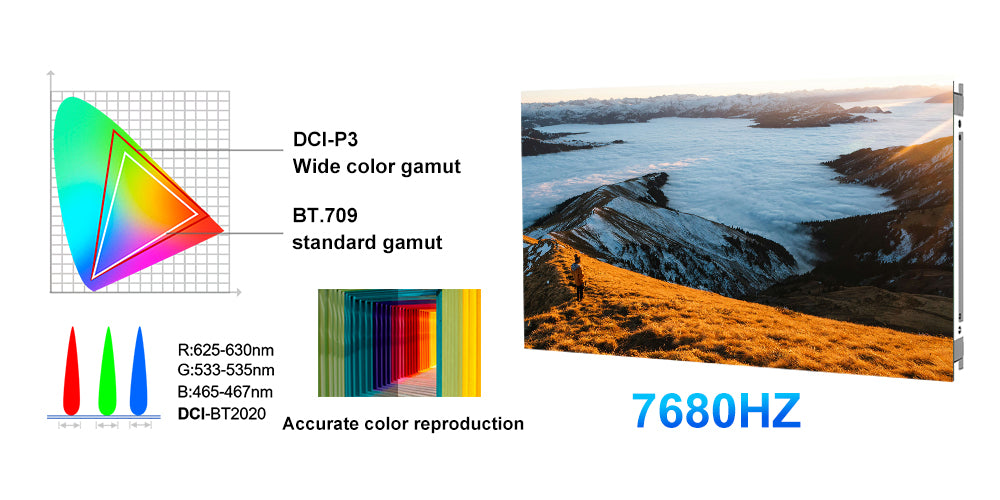

Stunning Visuals & Flexible Maintenance
Delivers accurate color reproduction and smooth, flicker-free dynamic images—perfect for professional filming. Supports front-access maintenance for easy installation and servicing, adaptable to various complex environments.

Durability & Protection
Designed with multiple protective features—including moisture resistance, anti-fingerprint coating, and impact protection—to ensure long-term, stable performance in various environments.
Applications Scenarios

Product Specification
| Model | Application | Pixel Pitch (mm) | LED Package | Surface Treatment / Product Type | Cabinet Size (mm) | Cabinet Resolution (px) | Weight | Brightness (nits) | Grayscale (bit) | Contrast Ratio | Refresh Rate (Hz) | Viewing Angle (H/V) / Transparency | IP Rating (Front / Rear) | Power Consumption (Max / Avg, W/m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CR-061 | Indoor | 0.62 | Flip-chip RGB | COB | 600 × 337.5 × 45 | 960 × 540 | 4 | 600 | 14 | 10000:1 | 3840 | 170° / 170° | IP54 / IP20 | 370 / 120 |
| CR-071 | Indoor | 0.78 | Flip-chip RGB | COB | 600 × 337.5 × 45 | 768 × 432 | 4 | 600 | 14 | 10000:1 | 3840 | 170° / 170° | IP54 / IP20 | 370 / 120 |
| CR-091 | Indoor | 0.93 | Flip-chip RGB | COB | 600 × 337.5 × 45 | 640 × 360 | 4 | 600 | 14 | 10000:1 | 3840 | 165° / 165° | IP54 / IP20 | 370 / 120 |
| CR-121 | Indoor | 1.25 | Flip-chip RGB | COB | 600 × 337.5 × 45 | 480 × 270 | 4 | 600 | 14 | 10000:1 | 3840 | 165° / 165° | IP54 / IP20 | 325 / 100 |
| CR-151 | Indoor | 1.5625 | Flip-chip RGB | COB | 600 × 337.5 × 45 | 384 × 216 | 4 | 600 | 14 | 10000:1 | 3840 | 160° / 160° | IP54 / IP20 | 325 / 100 |
| CR-181 | Indoor | 1.875 | Flip-chip RGB | COB | 600 × 337.5 × 45 | 320 × 180 | 4 | 550 | 14 | 10000:1 | 3840 | 160° / 160° | IP54 / IP20 | 325 / 100 |
